Our Front Mounted Locking Handle is suitable for our 56mm and 76mm heavy duty ball bearing drawer slides range. This locking handle allows the user to lock a custom built drawer in the closed position and is suitable for drawers with a width of up to 1122mm.

Suitable for a wide range of applications such as: Pick up pull-out platforms, vehicle under floor storage, large product stillage drawers and pull-out access for generators/batteries as well as bespoke engineering projects

Features

• Function: Lock-in
• Drawer Width: Up to 1122mm
• Max Drawer Front Panel Thickness: 7mm
• Material: PBT Glass Fiber Handle; Stainless Steel Parts
• Cycle Approved: 30,000 cycles
• Lightweight and Corrosion-resistant for fuel efficiency and outdoor use.

 Set Includes

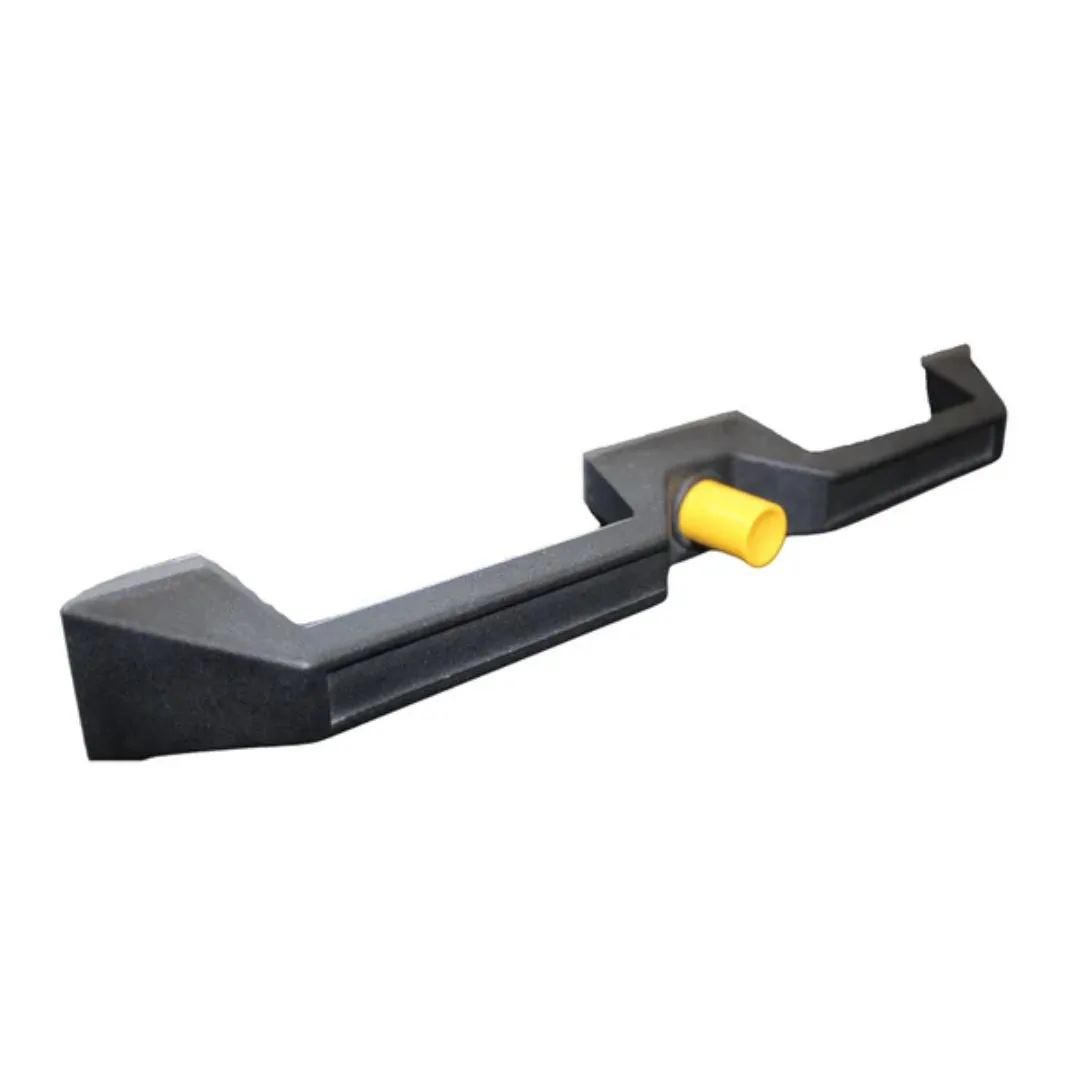

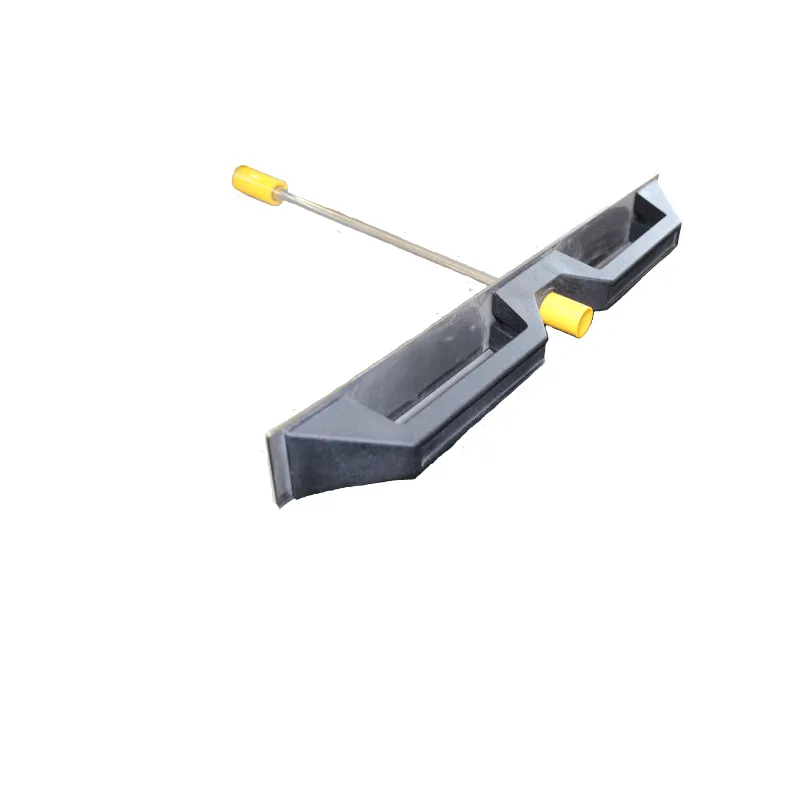

• 1 x Locking Handle (DS91500YL)
• 2 x Stainless Steel (Length: 500mm, Diameter: 10mm) Rods For Drawer Width (DS91500YL)

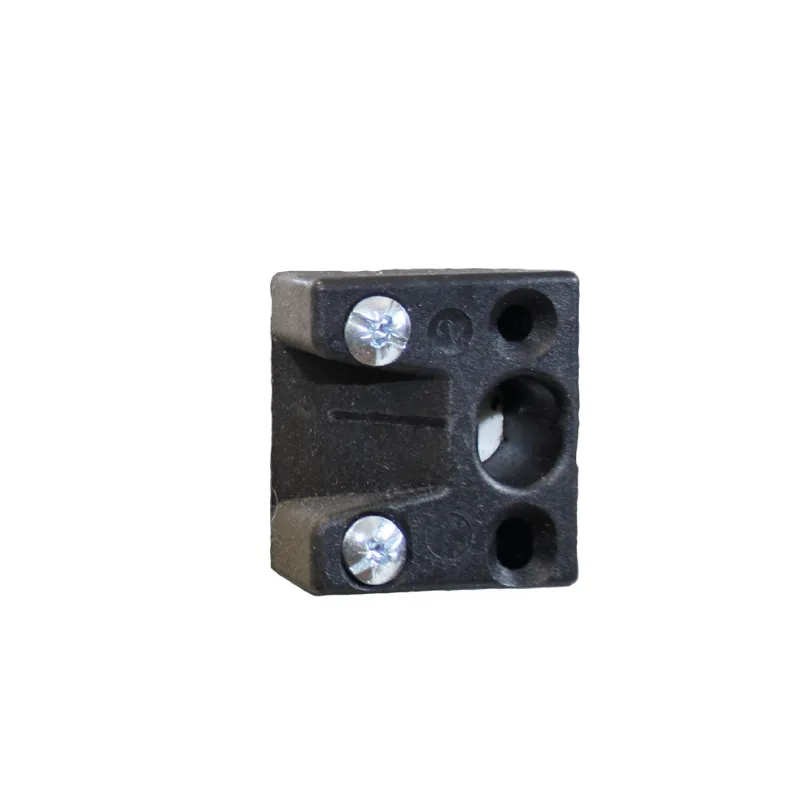

• 1 x Pair of Locking Blocks (DS91002)
• 1 x Pack of M5 Screws and M5 Bolts for fixing (DS91500YL)

More Locking Points?

Additional locking points can be placed through purchasing our locking blocks separately .

Require Lock in and Out

To view our lock in (closed position) and out (open position) handle then please see .
